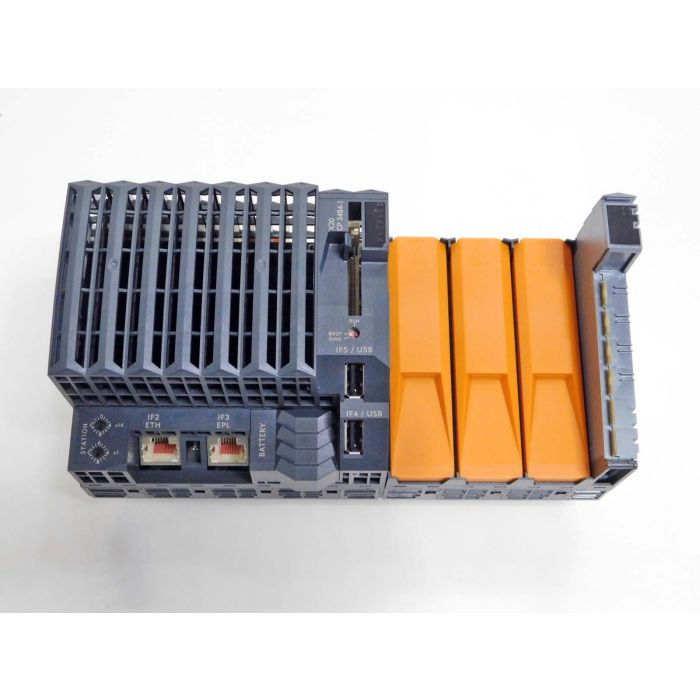

CPU COD. X20CP3484-1

CPU COD. X20CP3484-1

INTERFACES: 1x RS232, 1x ETHERNET, 1x POWERLINK V1/V2, 2x USB, 1x X2X LINK

SYSTEM MODULE: CPU

COOLING: FANLESS

STATUS INDICATORS: CPU FUNCTION, OVERTEMPERATURE, ETHERNET, POWERLINK, COMPACTFLASH, BATTERY

DIAGNOSTIC (BATTERY): YES, USING LED STATUS INDICATOR AND SOFTWARE

DIAGNOSTIC (CPU FUNCIOTN): YES, USING LED STATUS INDICATOR

DIAGNOSTIC (COMPACTFLASH): YES, USING LED STATUS INDICATOR

DIAGNOSTIC (ETHERNET): YES, USING LED STATUS INDICATOR

DIAGNOSTIC (POWERLINK): YES, USING LED STATUS INDICATOR

DIAGNOSTIC (OVERTEMPERATURE): YES, USING LED STATUS INDICATOR

SUPPORT (ACOPOS): YES

SUPPORT (VISUAL COMPONENTS): YES

POWER CONSUMPTION WITHOUT MEMORY CARD, INTERFACE MODUE AND USB: 10.5 W

POWER CONSUMPTION OF X2X LINK AND I/O POWER SUPPLY (BUS): 1.42 W

POWER CONSUMPTION OF X2X LINK AND I/O POWER SUPPLY (INTERNAL I/O): 0.6 W

ELECTRICAL ISOLATION (IF1 - IF2): YES

ELECTRICAL ISOLATION (IF1 - IF3): YES

ELECTRICAL ISOLATION (IF1 - IF4): NO

ELECTRICAL ISOLATION (IF1 - IF5): NO

ELECTRICAL ISOLATION (IF1 - IF6): YES

ELECTRICAL ISOLATION (IF2 - IF4): YES

ELECTRICAL ISOLATION (IF2 - IF5): YES

ELECTRICAL ISOLATION (IF3 - IF4): YES

ELECTRICAL ISOLATION (IF3 - IF5): YES

ELECTRICAL ISOLATION (IF4 - IF5): NO

ELECTRICAL ISOLATION (IF4 - IF6): YES

ELECTRICAL ISOLATION (IF5 - IF6): YES

ELECTRICAL ISOLATION (PLC - IF1): NO

ELECTRICAL ISOLATION (PLC - IF2): YES

ELECTRICAL ISOLATION (PLC - IF3): YES

ELECTRICAL ISOLATION (PLC - IF4): NO

ELECTRICAL ISOLATION (PLC - IF5): NO

ELECTRICAL ISOLATION (PLC - IF6): YES

CERTIFICATION CE: YES

CERTIFICATION UKCA: YES

CERTIFICATION ATEX: ZONE 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (SEE X20 USER'S MANUAL) FTZÚ 09 ATEX 0083X

CERTIFICATION UL: cULus E115267 INDUSTRIAL CONTROL EQUIPMENT

CERTIFICATION HAZLOC: cCSAus 244665 PROCESS CONTROL EQUIPMENT FOR HAZARDOUS LOCATIONS CLASS I, DIVISION 2, GROUPS ABCD, T5

CERTIFICATION DNV: TEMPERATURE B (0 -55°C), HUMIDITY B (FINO AL 100%), VIBRATION B (4g), EMC B (BRIDGE AND OPEN DECK)

CERTIFICATION LR: ENV1

CERTIFICATION KR: YES

CERTIFICATION ABS: YES

CERTIFICATION EAC: YES

CERTIFICATION KC: YES

CPU AND X2X LINK POWER SUPPLY (INPUT VOLTAGE): 24 VDC -15% / +20%

CPU AND X2X LINK POWER SUPPLY (INPUT CURRENT): MAX. 2.2 A

CPU AND X2X LINK POWER SUPPLY (FUSE): INTEGRADETD, CANNOT BE REPLACED

CPU AND X2X LINK POWER SUPPLY (REVERSE POLARITY PROTECTION): YES

X2X LINK POWER SUPPLY OUTPUT (NOMINAL OUTPUT POWER): 7 W

X2X LINK POWER SUPPLY OUTPUT (PARALLEL CONNECTION): YES

X2X LINK POWER SUPPLY OUTPUT (REDUNDANT OPERATION): YES

INPUT I/O POWER SUPPLY (INPUT VOLTAGE): 24 VDC -15% / +20%

INPUT I/O POWER SUPPLY (FUSE): REQUIRED LINE FUSE (MAX. 10 A, SLOW-BLOW)

OUTPUT I/O POWER SUPPLY (NOMINAL OUTPUT VOLTAGE): 24 VDC

OUTPUT I/O POWER SUPPLY (PERMISSIBLE CONTACT LOAD): 10 A

POWER SUPPLY - GENERAL INFORMATION (STATUS INDICATORS): OVERLOAD, OPERATING STATUS, MODULE STATUS, RS232 DATA TRANSFER

POWER SUPPLY - GENERAL INFORMATION (DIAGNOSTIC - RS232 DATA TRANSFER): YES, USING LED STATUS INDICATOR

POWER SUPPLY - GENERAL INFORMATION (DIAGNOSTIC - MODULE RUN/ERROR): YES, USING LED STATUS INDICATOR AND SOFTWARE

POWER SUPPLY - GENERAL INFORMATION (DIAGNOSTIC - OVERLOAD): YES, USING LED STATUS INDICATOR AND SOFTWARE

POWER SUPPLY - GENERAL INFORMATION (ELECTRICAL ISOLATION - I/O SUPPLY - I/O POWER SUPPLY): NO

POWER SUPPLY - GENERAL INFORMATION (ELECTRICAL ISOLATION - CPU/X2X LINK SUPPLY - CPU/X2X LINK POWER SUPPLY): YES

CONTROLLER (COMPACTFLASH SLOT): 1

CONTROLLER (REAL-TIME CLOCK): NONVOLATILE, RESOLUTION 1s, -20 TO 20 PPM ACCURANCY AT 25°C

CONTROLLER (FPU): YES

CONTROLLER (PROCESSOR TYPE): CELERON 266 (COMPATIBLE)

CONTROLLER (L1 CACHE FOR DATA AND PROGRAM CODE): 2x 16 kB

CONTROLLER (INTEGRATED I/O PROCESSOR): PROCESS I/O DATA POINTS IN THE BACKGROUND

CONTROLLER (MODULAR INTERFACE SLOTS): 3

CONTROLLER (REMANENT VARIABLES): MAX. 64 kB

CONTROLLER (SHORTEST TASK CLASS CYCLE TIME): 800 µs

CONTROLLER (TYPICAL INSTRUCTION CYCLE TIME): 0.007 µs

CONTROLLER (DATA BUFFERING - BATTERY MONITORING): YES

CONTROLLER (DATA BUFFERING - LITHIUM BATTERY): AT LEAST 3 YEARS

CONTROLLER (STANDARD MEMORY - RAM): 64 MB SDRAM

CONTROLLER (STANDARD MEMORY - USER RAM): 1 MB SRAM

INTERFACE IF1 (Type): RS232

INTERFACE IF1 (VARIANT): CONNECTION VIA 12-PIN TERMINAL BLOCK TB12

INTERFACE IF1 (TRANSFER RATE): MAX. 115.2 kbit/s

INTERFACE IF2 (TYPE): ETHERNET

INTERFACE IF2 (VARIANT): SHIELDED RJ45

INTERFACE IF2 (LINE LENGTH): MAX. 100m BETWEEN 2 STATIONS (SEGMENT LENGTH)

INTERFACE IF2 (TRANSFER RATE): 10/100 Mbit/s

INTERFACE IF3 (FIELDBUS): POWERLINK V1/V2

INTERFACE IF3 (TYPE): 100BASE-T (ANSI/IEEE 802.3)

INTERFACE IF3 (VARIANT): SHIELDED RJ45

INTERFACE IF3 (LINE LENGTH): MAX. 100m BETWEEN 2 STATIONS (SEGMENT LENGTH)

INTERFACE IF3 (TRANSFER RATE): 100 Mbit/s

INTERFACE IF4 (TYPE): USB 1.1

INTERFACE IF4 (VARIANT): TYPE A

INTERFACE IF4 (MAX. OUTPUT CURRENT): 0.5 A

INTERFACE IF5 (TYPE): USB 1.1

INTERFACE IF5 (VARIANT): TYPE A

INTERFACE IF5 (MAX. OUTPUT CURRENT): 0.5 A

INTERFACE IF6 (TYPE): X2X LINK MASTER

INTERFACE IF6 (QUANTITY): 1

MOUNTING ORIENTATION (HORIZONTAL): YES

MOUNTING ORIENTATION (VERTICAL): YES

INSTALLATION ELEVATION ABOVE SEA LEVEL (0 TO 2000m): NO LIMITATION

INSTALLATION ELEVATION ABOVE SEA LEVEL (>2000mt): REDUCTION OF AMBIENT TEMPERATURE BY 0.5°C PER 100m

DEGREE PROTECTION PER EN 60529: IP20

TEMPERATURE (OPERATION IN HORIZONTAL MOUNTING): 0 TO 55°C

TEMPERATURE (OPERATION IN VERTICAL MOUNTING): 0 TO 50°C

TEMPERATURE (STORAGE AND TRANSPORT): -25 TO 70°C

RELATIVE HUMIDITY (OPERATION, STORAGE AND TRANSPORT): 5 TO 95%, NON-CONDENSING

NOTE: ORDER APPLICATION MEMORY (COMPACTFLASH) SEPARATELY. BACKUP BATTERY, X20 END COVER PLATE (RIGHT), 12-PIN X20 TERMINAL BLOCK AND INTERFACE MODULE SLOT COVERS INCLUDED IN DELIVERY

DIMENSION (WIDTH): 200mm

DIMENSION (HEIGHT): 99mm

DIMENSION (DEPTH): 85mm

PRODUCER: B&R

PRODUCER CODE: X20CP3484-1
