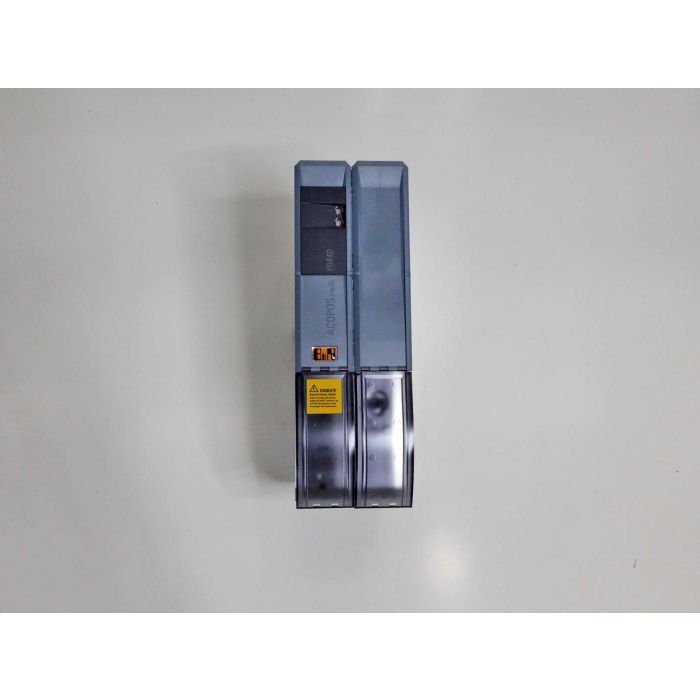

ACOPOSmulti POWER SUPPLY MODULE COD. 8BVP0440HW00.000-1

ACOPOSmulti REGENERATION CHOKE COD. 8BVR0440H000.100-1

COOLING AND MOUNTING TYPE: WALL MOUNTING

SLOT FOR PLUG-IN MODULES: 2

CERTIFICATION CE: YES

CERTIFICATION UL: cULUS E225616 POWER CONVERSION EQUIPMENT

CERTIFICATION EAC: YES

CERTIFICATION KC: YES

MAINS CONNECTION (NETWORK CONFIGURATIONS): TT, TN-S, TN-C-S

MAINS CONNECTION (MAINS INPUT VOLTAGE): 3x 220 to 3x 480 VAC ±10%

MAINS CONNECTION (FREQUENCY): 50 / 60 Hz ±4%

MAINS CONNECTION (INSTALLED LOAD): MAX. 31.1 kW

MAINS CONNECTION (INRUSH CURRENT AT 400 VAC): MAX. 67 A

MAINS CONNECTION (SWITCH-ON INTERVAL): >300s

MAINS CONNECTION (MAX. DC BUS CAPACITANCE DEPENDING ON MAINS VOLTAGE 230 VAC): 17.4 mF

MAINS CONNECTION (MAX. DC BUS CAPACITANCE DEPENDING ON MAINS VOLTAGE 400 VAC): 5.8 mF

MAINS CONNECTION (MAX. DC BUS CAPACITANCE DEPENDING ON MAINS VOLTAGE 480 VAC): 4 mF

MAINS CONNECTION (NOMINAL SWITCHING FREQUENCIES): 5 kHz

MAINS CONNECTION (POSSIBLE SWITCHING FREQUENCIES): 5 / 10 kHz

MAINS CONNECTION (INTEGRATED LINE FILTER PER EN 61800-3, CATEGORY C3): NO

MAINS CONNECTION (INTEGRATED REGENERATION CHOKE): NO

MAINS CONNECTION (REGENERATIVE): YES

MAINS CONNECTION (POWER FACTOR CORRECTION - PFC): SI

MAINS CONNECTION (VARIANT L1, L2, L3, PE): CONNECTOR

MAINS CONNECTION (VARIANT PE): M5 THREADED BOLT

MAINS CONNECTION (VARIANT - SHIELD CONNECTION): YES

MAINS CONNECTION (TERMINAL CONNECTION CROSS SECTION - FLEXIBLE AND FINE-STRANDED WIRES WITH WIRE END SLEEVES): 0.5 A 16mm²

MAINS CONNECTION (APPROBATION DATA UL/C-UL-US CSA): 20 A 6 AWG

MAINS CONNECTION (TERMINAL CABLE CROSS SECTION DIMENSION OF SHIELD CONNECTION): 23 A 35mm

DC BUS CONNECTION (NOMINAL VOLTAGE): 750 VDC

DC BUS CONNECTION (CONTINUOUS POWER - SUPPLY AND REGENERATION): 30 kW

DC BUS CONNECTION (REDUCTION OF CONTINUOUS POWER DEPENDING ON MAINS INPUT VOLTAGE - MAINS INPUT VOLTAGE <3x 400 VAC): 75 W/V *(MAINS INPUT VOLTAGE 400 V)

DC BUS CONNECTION (REDUCTION OF CONTINUOUS POWER DEPENDING ON DC BUS VOLTAGE - UDC <750 VDC): P * (1 - UDC/750)

DC BUS CONNECTION (REDUCTION OF CONTINUOUS POWER DEPENDING ON SWITCHING FREQUENCY - SWITCHING FREQUENCY 5 kHz): 1.11 kW/K (A PARTIRE DA 40°C)

CDC BUS CONNECTION (REDUCTION OF CONTINUOUS POWER DEPENDING ON SWITCHING FREQUENCY - SWITCHING FREQUENCY 10 kHz): 0.35 kW/K (A PARTIRE DA -10°C)

DC BUS CONNECTION (REDUCTION OF CONTINUOUS POWER DEPENDING ON INSTALLATION ELEVATION STARTING AT 500m ABOVE SEA LEVEL): 3 kW per 1000mt

DC BUS CONNECTION (PEAK POWER - SUPPLY AND REGENERATION): 60 kW

DC BUS CONNECTION (POWER DISSIPATION DEPENDING ON SWITCHING FREQUENCY - SWITCHING FREQUENCY 5 kHz): [0.15*P²+10.5*P+40] W

DC BUS CONNECTION ((POWER DISSIPATION DEPENDING ON SWITCHING FREQUENCY - SWITCHING FREQUENCY 10 kHz): [0.42*P²+16*P+130] W

DC BUS CONNECTION (DC BUS CAPACITANCE): 825 µF

DC BUS CONNECTION (PROTECTIVE MEASURES - OVERLOAD PROTECTION): YES

DC BUS CONNECTION (PROTECTIVE MEASURES - SHORT-CIRCUIT AND GROUND FAULT PROTECTION): NO

DC BUS CONNECTION (VARIANT): ACOPOSmulti BACKPLANE

24 VDC POWER SUPPLY (INPUT VOLTAGE): 25 VDC ±1.6%

24 VDC POWER SUPPLY (INPUT CAPACITANCE): 4.7 µF

24 VDC POWER SUPPLY (MAX. POWER CONSUMPTION): 25 W + PSLOT1 + PSLOT2 + P24 V Out + PFan8BVF...

24 VDC POWER SUPPLY (VARIANT): ACOPOSmulti BACKPLANE

24 VDC OUT (QUANTITY): 2

24 VDC OUT (OUTPUT VOLTAGE - DC BUS VOLTAGE UDC 260 TO 315 VDC): 25 VDC * (UDC / 315)

24 VDC OUT (OUTPUT VOLTAGE - DC BUS VOLTAGE UDC 315 TO 800 VDC): 24 VDC ±6%

24 VDC OUT (FUSE PROTECTION): 250 mA (SLOW-BLOW) ELECTRONIC, AUTOMATIC RESET

FILTER FAN CONNECTION (OUTPUT VOLTAGE): 24 V +5.8% / -0.1%

FILTER FAN CONNECTION (CONTINUOUS CURRENT): 4.2 A

FILTER FAN CONNECTION (MAX. OVERCURRENT LIMITING): 10 A

FILTER FAN CONNECTION (PROTECTIVE MEASURES - OVERLOAD PROTECTION): NO

FILTER FAN CONNECTION (PROTECTIVE MEASURES - SHORT-CIRCUIT PROOF): YES

FILTER FAN CONNECTION (PROTECTIVE MEASURES - OPEN-CIRCUIT MONITORING): NO

FILTER FAN CONNECTION (PROTECTIVE MEASURES - UNDERVOLTAGE MONITORING): NO

TRIGGER INPUTS (QUANTITY): 2

TRIGGER INPUTS (CIRCUIT): SINK

TRIGGER INPUTS (ELECTRICAL ISOLATION - INPUT - POWER SUPPLY MODULE): YES

TRIGGER INPUTS (ELECTRICAL ISOLATION - INPUT - INPUT): YES

TRIGGER INPUTS (INPUT VOLTAGE NOMINAL): 24 VDC

TRIGGER INPUTS (INPUT VOLTAGE MAXIMUM): 30 VDC

TRIGGER INPUTS (SWITCHING THRESHOLD LOW): <5 V

TRIGGER INPUTS (SWITCHING THRESHOLD HIGH): >15 V

TRIGGER INPUTS (INPUT CURRENT AT NOMINAL VOLTAGE): APPROX. 10 mA

TRIGGER INPUTS (SWITCHING DELAY - RISING EDGE): 52 μs ±0.5 μs (DIGITALLY FILTERED)

TRIGGER INPUTS (SWITCHING DELAY - FALLING EDGE): 53 μs ±0.5 μs (DIGITALLY FILTERED)

TRIGGER INPUTS (MODULATION COMPARED TO GROUND POTENTIAL): MAX. ±38 V

ELECTRICAL PROPERTIES (DISCHARGE CAPACITANCE): 0.9 µF

PERMISSIBLE MOUNTING ORIENTATIONS (HANGING VERTICALLY): YES

PERMISSIBLE MOUNTING ORIENTATIONS (HORIZONTAL, FACE UP): YES

PERMISSIBLE MOUNTING ORIENTATIONS (STANDING HORIZONTALLY): NO

INSTALLATION ELEVATION ABOVE SEA LEVEL (NOMINAL): 0 TO 500m

INSTALLATION ELEVATION ABOVE SEA LEVEL (MAXIMUM): 4000m

POLLUTION DEGRRE PER EN 61800-5-1: 2 (NON-CONDUTTIVE POLLUTION)

OVERVOLTAGE CATEGORY PER EN 61800-5-1: III

DEGREE PROTECTION PER EN 60529: IP20

TEMPERATURE (OPERATION NOMINAL): 5°C TO 40°C

TEMPERATURE (OPERATION MAX.): 55°C

TEMPERATURE (STORAGE): -25°C TO 55°C

TEMPERATURE (TRANSPORT): -25°C TO 70°C

RELATIVE HUMIDITY (OPERATION): 5 TO 85%

RELATIVE HUMIDITY (STORAGE): 5 TO 95%

RELATIVE HUMIDITY (TRANSPORT): MAX. 95% TO 40°C

DIMENSION (WIDTH): 106.5mm

DIMENSION (HEIGHT): 317mm

DIMENSION (DEPTH - WALL MOUNTING): 263mm

WEIGHT: APPROX. 5.5kg

PRODUCER: B&R

PRODUCER CODE: 8BVR0440H000.100-1
