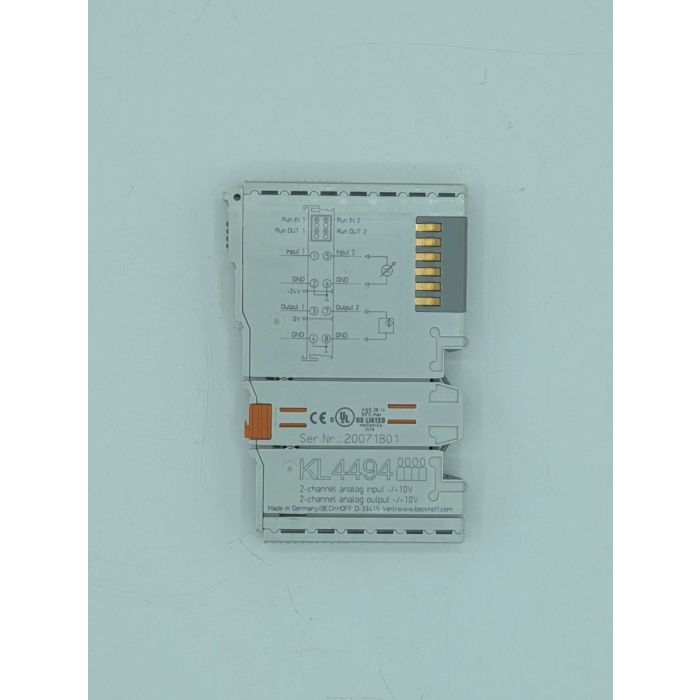

MOD. 2-CHANNEL ANALOGIC INPUT/OUTPUT KL4494

TECHNOLOGY: SINGLE-ENDED

NUMBER OF OUTPUTS: 2 OUTPUTS + 2 INPUTS

NUMBER OF INPUTS: 2

POWER SUPPLY: VIA THE K-BUS

SIGNAL VOLTAGE: -10…+10 V

INTERNAL RESISTANCE: INPUT: > 130 KΩ

LOAD: > 5 KΩ (SHORT-CIRCUIT PROOF)

OUTPUT ERROR: < ±0.3% (RELATIVE TO END VALUE)

RESOLUTION: 12 BIT

CONVERSION TIME: < 2 MS

ELECTRICAL ISOLATION: 500 V (K-BUS/SIGNAL VOLTAGE)

CURRENT CONSUMPTION POWER CONTACTS: LOAD ONLY

CURRENT CONSUMPTION K-BUS: TYP. 70 MA

BIT WIDTH IN THE PROCESS IMAGE: INPUT/OUTPUT: 2 X 16 BIT DATA

SPECIAL FEATURES: INPUT/OUTPUT TERMINAL

WEIGHT APPROX.: 55 G

OPERATING TEMPERATURE: 0…55°C

STORAGE TEMPERATURE: -25…+85°C

RELATIVE HUMIDITY: 95%, NO CONDENSATION

VIBRATION/SHOCK RESISTANCE: CONFORMS TO EN 60068-2-6/EN 60068-2-27

EMC IMMUNITY/EMISSION: CONFORMS TO EN 61000-6-2/EN 61000-6-4V

PROTECT. RATING/INSTALLATION POS.: IP20/VARIABLE

PLUGGABLE WIRING LEVEL: FOR ALL KSXXXX BUS TERMINALS

MANUFACTURER CODE: KL4494

MANUFACTURER: BECKHOFF
